Thermo Scientific Merlin recirculating chillers are ideal for applications requiring heat removal across a wide temperature range. Offering five cooling capacities with a temperature range from -15°C to +35°C, the Merlin chiller platform provides powerful cooling in a reliable and compact design. With a wide variety of options including a choice of pumps, communication packages, and Low-Level/Low-Flow indicators, Merlin recirculating chillers can be configured to meet a wide range of applcation requirements. Global compliance ensures user safety Easy–to–use intuitive controller Translucent reservoir enables quick viewing of fluid level Removable grille allows for quick and easy preventative maintenance Recommended for: Biotech Pharmaceutical Laser Laboratory Analytical instrumentation Printing Semiconductor Industrial Medical
Sold out
Merlin™ Recirculating Chillers
Save valuable space with compact, Thermo Scientific™ Merlin Low-Temperature Refrigerated Chillers. These extended-temperature chillers deliver a continuous supply of 1000 to 4300 watts of cooling capacity for critical applications.
Description
Additional information
| Certifications/Compliance |
CE, CE marked/UL listed |
|---|---|
| Communications |
RS232, Remote Start, low flow & low level alarms, RS232 & Remote Start |
| Cooling Capacity |
Up to 4,282 watts, Up to 4,832 watts, Up to 1,300 watts, Up to 1,800 watts, Up to 2,156 watts |
| Pump Type |
CP55 (Centrifugal Pump), T1 (Turbine Pump), PD2 (Positive Displacement Pump) |
| Temperature Range |
-15°C to +35°C |
| Pump Capacity |
10 gpm @ 22 psi (37.9 L/min. @ 1.7 bar), 10 gpm @ 34 psi (37.9 L/min. @ 2.3 bar), 3.5 @ 60 psi (13.0 @ 4.2 bar), 2.5 gpm @ 60 psi (9.5 L/min. @ 4.2 bar), 3 gpm @ 60 psi (11.4 L/min. @ 4.2 bar), 2.5 @ 60 psi (9.5 @ 4.1 bar) |
| Refrigerant |
R134A |
| Temperature Stability |
±0.1°C |
| Electrical Requirements |
230 V 50 Hz, 230 V 60 Hz, 208 V 60 Hz |
| Unit Size |
Each |
Reviews (0)
Shipping & Delivery
Related products
Сatalog number:
TF900-LN

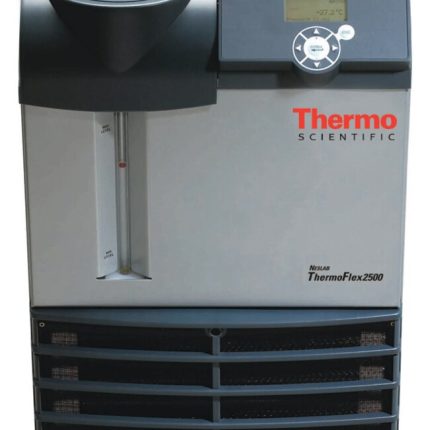

ThermoFlex™ Recirculating Chillers
Optimized for the most demanding applications, Thermo Scientific™ ThermoFlex Recirculating Chillers are reliable, easy-to-use and easy-to-maintain. The ThermoFlex platform was developed with customer input from concept to design. This high-performance chiller platform, with cooling capacity up to 24,000 watts (81,948 btu/hr), is configurable to meet application demands.
Сatalog number:
223432900

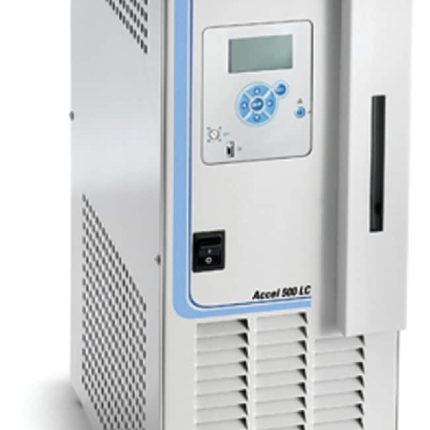

Polar Series Accel 500 LT Cooling/Heating Recirculating Chillers
Thermo Scientific™ Polar Series Accel 500 LT Cooling/Heating Recirculating Chillers offer 500 watts of cooling, with a working temperature range of −25° to +80°C. Dynamic, reliable and efficient—these powerful, compact chillers offer full-range cooling capabilities for quick ramp-up and cool-down of your application. Offered with choice of a force or force/suction pump, and USB communication—a perfect fit for your laboratory.
Сatalog number:
196224120000

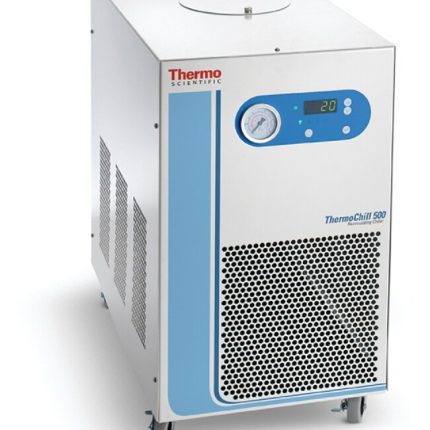

ThermoChill I Recirculating Chillers
